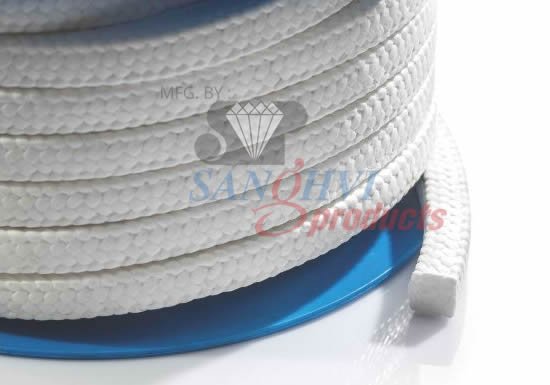

Construction: | High tensile yarn made from a special grade PTFE, impregnated with PTFE dispersion and lubricated with inert high temperature lubricant. |
Application: | This packing has particular characteristics such as low coefficient of friction and excellent tightness, making it suitable for rotary, reciprocating and static applications. It is widely used in all type of industries where purity and safety are vital criteria, such as food processing, pharmaceutical, chemical industries, etc. |
Available SIze: | From 3mm to 45mm. |
Installation: | Installation Detail |
Service Parameters: |
Temp.
|
pH |
Pressure |
Velocity |
�
C |
Range |
Kg/cm2 |
Mtrs/sec |
|
-200
to 260 |
0-14 |
100 |
8 |
Standard Packing: |
3mm to 5mm
|
6mm to 14mm |
16mm to 19mm |
Above 19mm |
1/2 kg |
1kg |
2kg2 |
5kg |
